2 x DDR4 DIMM sockets supporting up to 64 GB
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz
Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

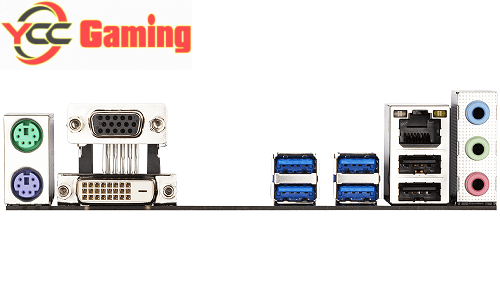

Cổng kết nối (Back Panel)
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x D-Sub port
1 x DVI-D port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
